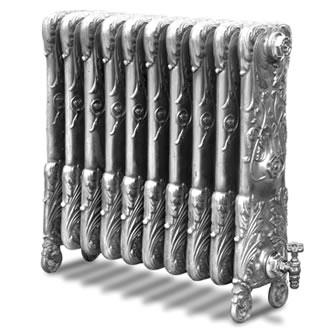

The Chelsea Cast Iron Radiator

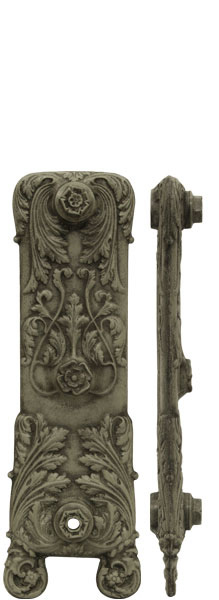

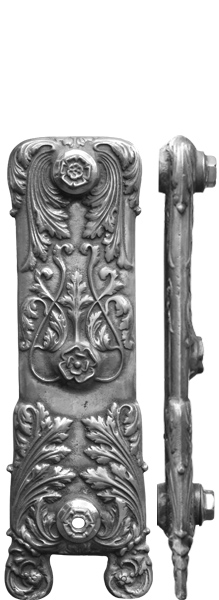

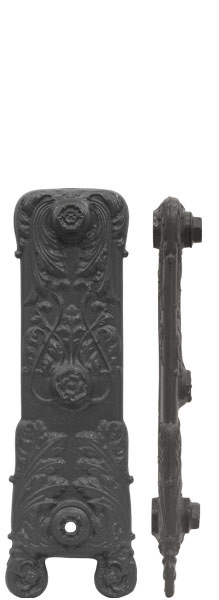

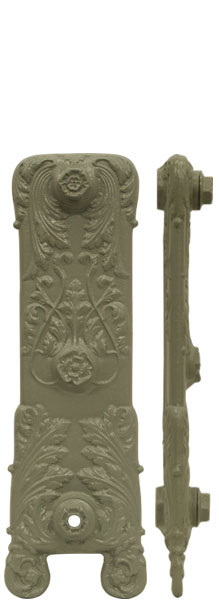

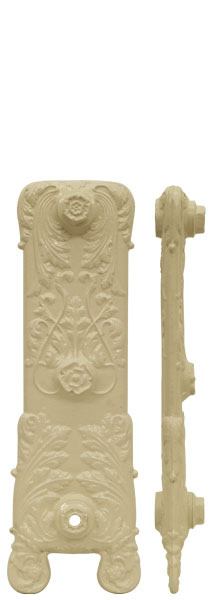

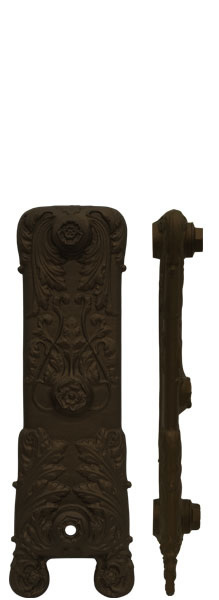

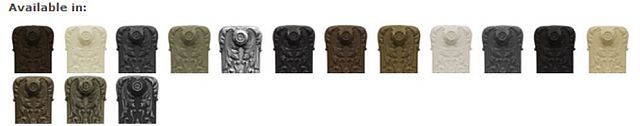

chelsea colours

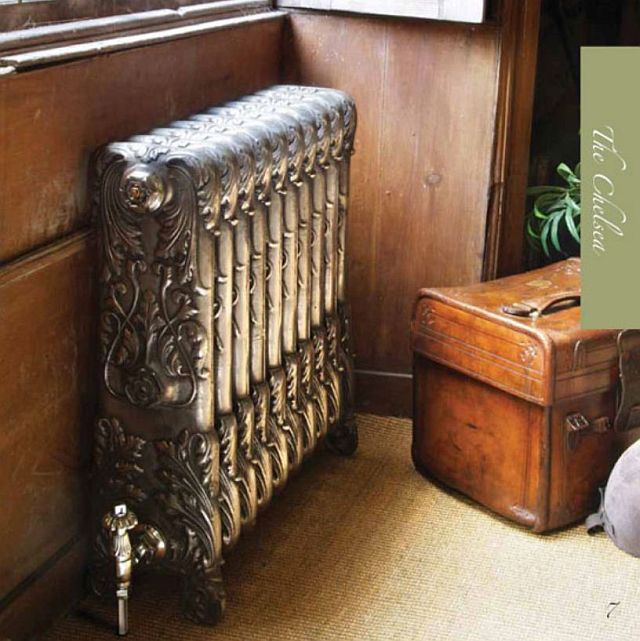

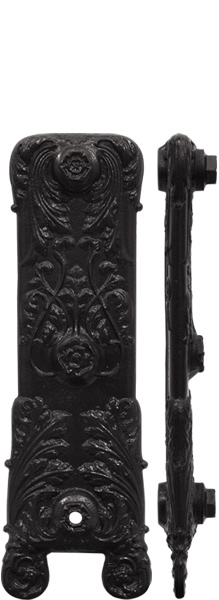

Dating from circa 1900, this elaborately decorated cast iron radiator design was originally commissioned for the Chelsea Barracks Officers’ Mess.

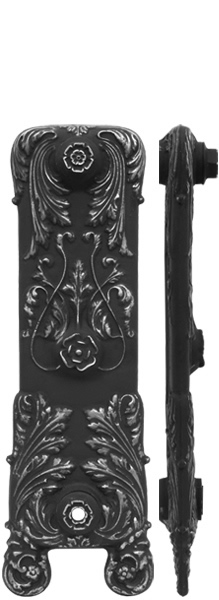

With its pronounced detailing, this radiator looks outstanding in polished or highlighted finish.

Technical Data

12_technical

Code Column qty A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Delta 50 Delta 60 Weight (KG)
BTUs Watts BTUs Watts Empty Filled
LD063/064 1 675 195 500 125 220 67 338 99 427 125 13.3 14.8



Code Wall Stay (suitable fitting)
HEF035 LD055 LD056 LD103 LD104
LD063/064 Yes No Yes Yes Yes
